Compare the actual space inside
Use the dimensions of the proposed unit, including its cooling equipment and insulation. These are two separate configuration examples.

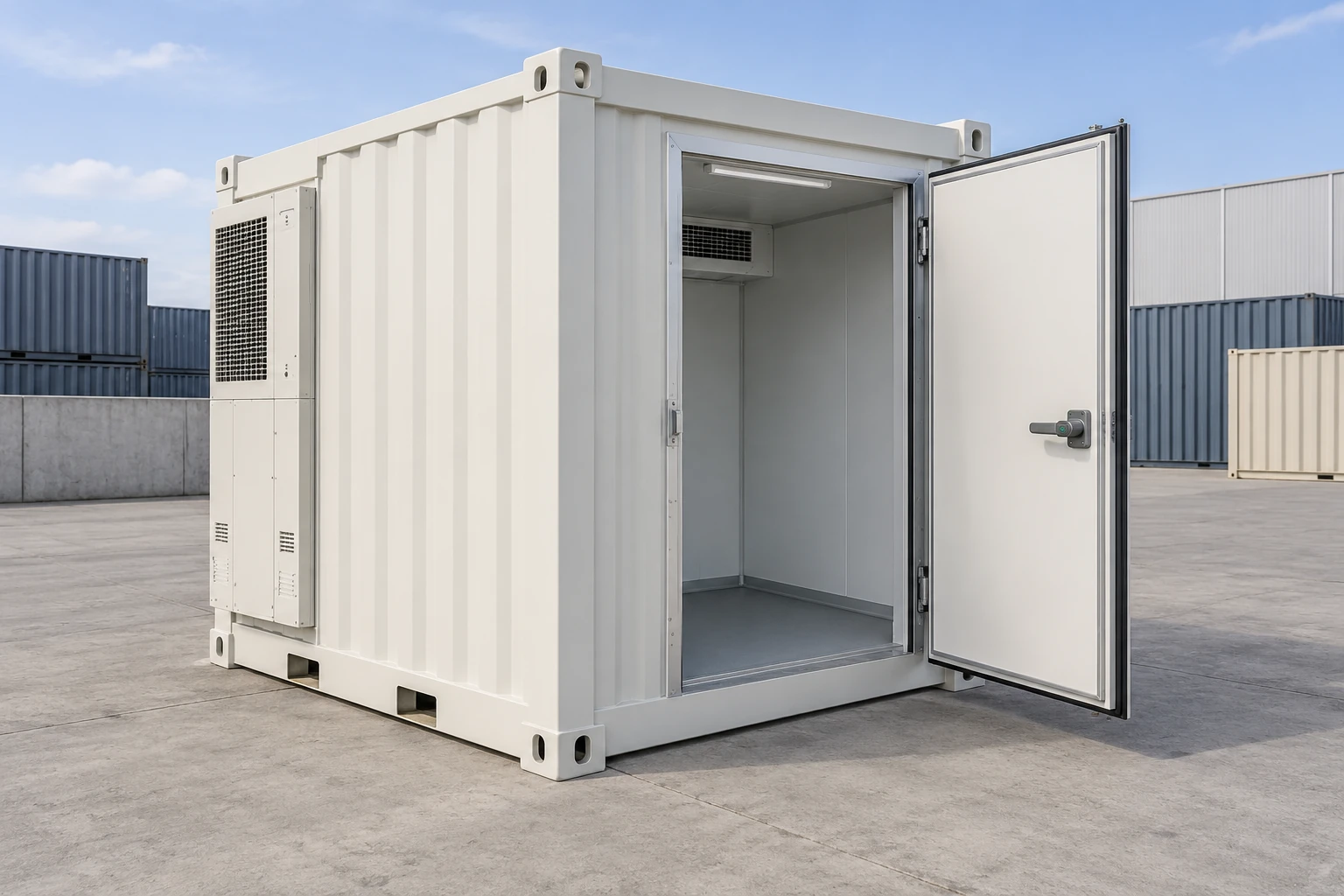

These nominal dimensions describe the listed examples. A walk-in door can make repeated entry convenient, while cargo doors serve a different loading routine. Confirm the offered floor, doorway and load limits before choosing either arrangement.
| Configuration example | Outside L × W × H | Inside L × W × H | Door and floor |
|---|---|---|---|
| Compact T-floor model | 10 ft × 8 ft × 8 ft 6 in | 8 ft × 7 ft 4 in × 7 ft 4 in | Cargo-door opening about 7 ft 4 in wide × 7 ft 4½ in high; aluminum T-floor |
| Portable pallet-storage model | 10 ft × 8 ft × 9 ft 6 in | 7 ft 8 in × 7 ft 4 in × 8 ft 4 in | Butcher or swing-door configurations; flat or T-floor options |
Choose the door for your peak load
The portable pallet-storage example lists three US 48 × 40 in pallet positions with a butcher door, or four with its swing-door arrangement. Its front-row pallet height is limited to 60.6 in. Those figures belong to that configuration; they do not describe the separate standard-outlet product.
The four-position floor pattern leaves little freedom for full-footprint goods and access. The fleet’s loading guide calls for clearance between merchandise and the sidewalls, ceiling and rear doors. Map the packaged load, loading sequence and retrieval routine before treating every nominal position as storage you can use.
For frequent picking, a clear entry and access to each item may matter more than filling the floor. Compare the broader refrigerated load plans before buying around a headline pallet count.
Swipe or scroll to read the diagram.
Match the refrigeration system to site power
A separate US 10ft system lists 440–480 V, three phase, 60 Hz, with an optional 220 V single-phase conversion package. Treat that package as part of the equipment specification, including its input and connection requirements.
Before delivery, match the unit’s voltage, phase, frequency, connector and circuit requirements to the site with your electrician. Supply ratings do not tell you the daily electricity bill. Use a representative meter record for the intended load and door routine.
A selectable temperature range does not establish how quickly warm goods will cool or freeze. If that is part of the job, specify the arrival temperature, batch size and required completion time as well as the holding temperature.
| Separate configuration | Listed temperature range | Advertised supply |
|---|---|---|
| Portable standard-outlet product | 0 to 50°F (−17.8 to 10°C) | 110 V / 15 A; advertised for a standard outlet |
| Compact T-floor manufacturer example | −10 to 70°F (−23.3 to 21.1°C) | 230 V / 60 A or 460 V / 30 A, three phase |
Compare the compact footprint with the equipment price
Two California purchase offers checked October 9, 2026 illustrate why length alone does not set the asking price.
The machinery and purchase scope can differ between these offers. If a 20ft also fits, compare the configured quotes before paying for the smaller footprint. These dated asking prices do not include a confirmed total for transport, unloading, taxes or site electrical work.
Keep the equipment scope clear: an insulated shell with non-working refrigeration provides no active cooling. The priced 10ft unit above is also a different product from the portable standard-outlet and pallet-storage examples.
| Offer example | Condition and refrigeration | Market | Unit asking price |
|---|---|---|---|
| 10ft standard height | One trip, like new; active cooling advertised; 480 V three phase | Santa Maria, California | $26,800 |
| 20ft standard height comparison | New; active cooling advertised; three phase | Santa Maria, California | $26,800 |
Check the truck approach as well as the final footprint
One gooseneck tilt-bed delivery service specifies 80 ft of straight approach for both its 10ft and 20ft deliveries. A compact installed footprint can solve the placement problem while the delivery vehicle still needs a longer route. Confirm the truck method, turns, unloading surface and overhead clearance for your address.
Orient the entry for your load routine and leave the cooling equipment accessible for ventilation and service. Ask for the offered unit’s machinery identity, a dated operating test and written refrigeration warranty terms. Include the required temperature, packaged load, site power and delivery ZIP in your request.
The price request opens an editable draft you can review, copy or download. You choose when to share it with a supplier.
Buying questions
Can a 10ft refrigerated container use a normal outlet?
A specific portable product advertises 110 V / 15 A standard-outlet operation. Other 10ft designs use higher voltage or three phase. Check the supplied unit and its connection requirements before selecting the circuit.
Is a 10ft reefer always cheaper than a 20ft?
Compare the actual offers. The California examples checked October 9, 2026 both ask $26,800, with different unit configurations. The delivered cost also depends on the equipment, transport and site setup.
Can I count on four pallet positions?
Four is a published figure for one portable model’s swing-door arrangement. Its butcher-door arrangement lists three. Packaged dimensions, airflow, height restrictions and the access routine must be checked for the proposed unit.
